Bonfire x
The extreme Version
More Power, better performance, higher top speed and faster acceleration. The Bonfire X is here to break the limits.
performance
Range
The Bonfire X delivers up to 120 km range. To ensure longevity & durability, we use premium 18650 cells by Panasonic.
The batteries are removable & only weight 11.5 kg. You can simply charge them at home, either separately or while installed in the bike.
The Bonfire X comes with two batteries and two chargers. With the quick charger it is possible to charge the batteries in 3 hours.
performance
Speed

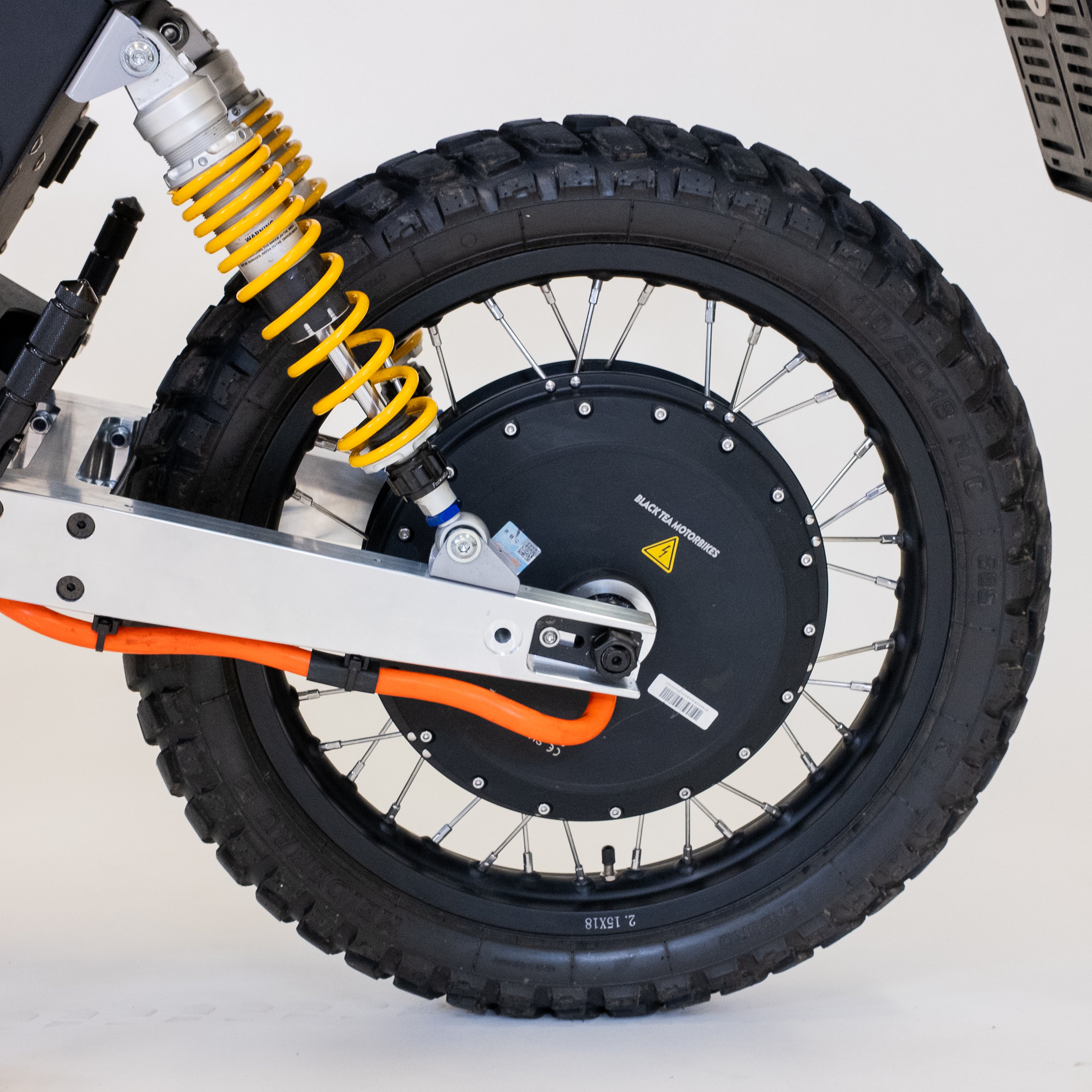

With the powerful 4 kW hub motor you can enjoy top speeds of +80 km/h (+50 mph).
With over 180 Nm torque, you can easily climb hills or give a friend a ride home.
In Europe you need at least an A1 motorcycle driving license & in the US it depends on your state's regulation.
Explore the places you love. Grab your camera. It’s time to make some memories.
Drivetrain
Speed: +80 km/h (+50 mph)
Range: 90 - 120 km
Peak Power: 7 kW
Rated Power: 4 kW
Torque: 180 Nm
Battery
Cells: Panasonic NCR18650
Voltage: 100V
Capacity: 35 Ah / 3.5 kWh
Weight: 23 kg
Features: Removable
Dimensions
Motorcycle: 1900 x 700 x 1350 mm
Weight (Dry): 109 kg
Seat Height: 78 cm
Wheelbase: 1300 mm
cell technology
Removable Battery Packs
To ensure longevity, durability & safety, we use two 52V batteries.
Unplugged the batteries are low voltage and can be simply charged at home. Connected in the bike they double their voltage to double the power output.
Utility
Riding Experience
The Bonfire X is optimised for both street and offroad use. The 18 inch wheels are equipped with Heidenau K60 Dual Sport Tires for optimal handling.
A CBS braking system, with 240 mm front & 220 mm rear discs, ensures safe braking even at higher speed.
Regenerative braking increases your range and also spares the brakes.
Utility
Capacity
Drive through shallow rivers or about any terrain with 25 cm of ground clearance. There are endless possibilities to have fun on this bike.
Take a friend with you. Transport stuff in your tank or attach racks to transport even more. The Bonfire has a carrying capacity of 180 kg & 3l of included storage.
2021 has a lot of surprises coming. A redesigned tank with 6l storage, new racks and off-road add-ons for the bike.
Coming summer 2021.
Wheels
Rims: 18 x2.15 Aluminium Rims
Front Tire: 18 - 90/90 K60 Heidenau
Rear Tire: 18 - 110/80 K60 Heidenau
Brakes
System: CBS Dual Calliper
Front: 240 mm disc
Rear: 220 mm disc
Thickness: 3 mm
Suspension
Front: Telescopic Fork
Travel: 200 mm
Rear: Adjustable Shock Absorber
Length: 340 mm
